Decoding the Dimensions: A Complete Information to Schedule 40 Pipe

Schedule 40 pipe, a ubiquitous presence in plumbing, industrial, and building purposes, is outlined by its standardized dimensions and wall thickness. Understanding these dimensions is essential for engineers, contractors, and anybody working with piping methods. This complete information delves into the intricacies of Schedule 40 pipe dimensions, offering an in depth chart and explaining its significance in numerous purposes.

Understanding Schedule Designation:

Earlier than diving into the specifics of dimensions, it is essential to grasp what "Schedule 40" signifies. The schedule designation refers back to the pipe’s wall thickness relative to its nominal diameter. Greater schedule numbers point out thicker partitions and larger stress resistance. Schedule 40 is a standard alternative for a lot of purposes because of its stability of energy and cost-effectiveness. Different widespread schedules embrace Schedule 80 (thicker partitions), Schedule 10 (thinner partitions), and others, every designed for particular stress and temperature necessities.

The Significance of Nominal Diameter:

The nominal diameter (ND) of a pipe is just not its precise inside diameter (ID) or exterior diameter (OD). It is a nominal or approximate measurement used for identification and standardization functions. Whereas it is near the precise ID, the distinction turns into extra pronounced with bigger pipe sizes. That is essential to think about when deciding on pipe for particular purposes the place exact inner move capability is essential.

Key Dimensions in Schedule 40 Pipe:

The important thing dimensions for Schedule 40 pipe embrace:

• Nominal Diameter (ND): That is the usual measurement designation of the pipe. It is expressed in inches (e.g., 1/2", 1", 2", 4", and so forth.).

• Outdoors Diameter (OD): That is the precise measurement of the pipe’s exterior diameter. It stays comparatively fixed throughout completely different schedules for a given nominal diameter.

• Inside Diameter (ID): That is the precise diameter of the pipe’s inner bore, the place the fluid flows. It varies considerably relying on the schedule because of variations in wall thickness.

• Wall Thickness: That is the thickness of the pipe’s wall materials. It is straight associated to the schedule designation; larger schedules imply thicker partitions.

• Weight per Foot: This represents the burden of a one-foot size of the pipe. It is influenced by each the nominal diameter and the schedule.

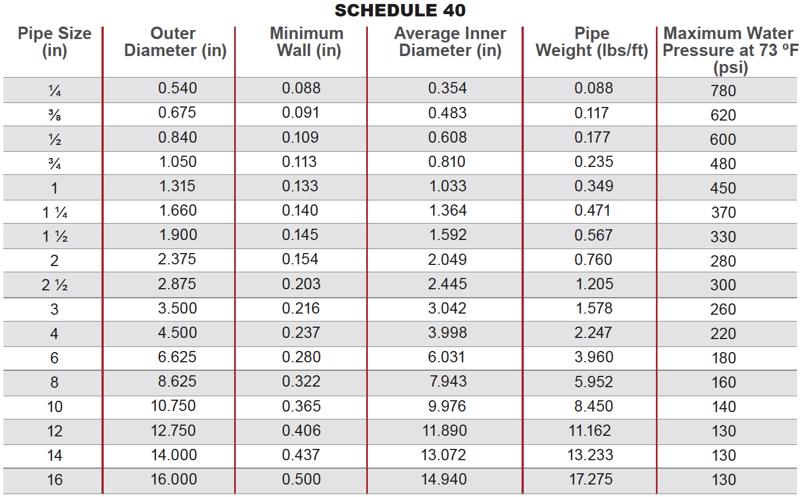

Schedule 40 Pipe Dimensions Chart:

The next chart offers an in depth overview of the size for widespread Schedule 40 pipe sizes. Notice that these values are approximate and will fluctuate barely relying on the producer and materials. All the time discuss with the producer’s specs for exact measurements.

Nominal Diameter (in)	Outdoors Diameter (OD) (in)	Inside Diameter (ID) (in)	Wall Thickness (in)	Weight per Foot (lbs)
1/8	0.405	0.269	0.068	0.24
1/4	0.540	0.302	0.119	0.42
3/8	0.675	0.423	0.126	0.57
1/2	0.840	0.622	0.109	0.85
3/4	1.050	0.824	0.113	1.13
1	1.315	1.049	0.133	1.68
1 1/4	1.660	1.380	0.140	2.24
1 1/2	1.900	1.610	0.145	2.72
2	2.375	2.067	0.154	3.61
2 1/2	2.875	2.469	0.203	5.74
3	3.500	3.068	0.216	7.58
3 1/2	4.000	3.548	0.226	9.11
4	4.500	4.026	0.237	10.79
5	5.563	5.047	0.258	14.62
6	6.625	6.065	0.280	18.97
8	8.625	8.071	0.277	28.55
10	10.750	10.020	0.365	39.51
12	12.750	12.000	0.375	53.17

Materials Concerns:

Schedule 40 pipe is usually manufactured from numerous supplies, together with:

• Metal: The most typical materials, providing excessive energy and sturdiness. Metal pipes may be additional categorized based mostly on their coatings (galvanized, black iron, and so forth.).

• Copper: Gives glorious corrosion resistance, making it appropriate for potable water purposes.

• PVC (Polyvinyl Chloride): A light-weight and corrosion-resistant plastic materials, typically utilized in much less demanding purposes.

• CPVC (Chlorinated Polyvinyl Chloride): A better-temperature and pressure-resistant model of PVC.

Purposes of Schedule 40 Pipe:

The flexibility of Schedule 40 pipe makes it appropriate for a variety of purposes, together with:

• Water Provide Methods: For each residential and industrial purposes, carrying potable water underneath reasonable stress.

• Drainage and Sewer Methods: Dealing with wastewater and different non-potable liquids.

• Industrial Piping: Utilized in numerous industrial processes for transporting fluids, gases, and different supplies.

• Hearth Safety Methods: In sprinkler methods and different fireplace safety purposes.

• HVAC Methods: Transporting refrigerants and different fluids in heating, air flow, and air con methods.

Deciding on the Proper Schedule:

Selecting the suitable schedule for a selected utility requires cautious consideration of a number of components:

• Working Strain: Greater working pressures necessitate larger schedule pipes with thicker partitions.

• Temperature: Excessive-temperature purposes could require pipes with larger temperature scores.

• Fluid Sort: The kind of fluid being transported can affect materials choice and schedule necessities.

• Corrosion Resistance: For corrosive fluids, supplies with inherent corrosion resistance or protecting coatings are mandatory.

Conclusion:

Understanding Schedule 40 pipe dimensions is crucial for profitable venture planning and execution in numerous fields. By fastidiously reviewing the size chart and contemplating the components mentioned, engineers, contractors, and technicians can choose the suitable pipe for his or her particular utility, making certain the protection, effectivity, and longevity of the piping system. All the time keep in mind to seek the advice of related codes, requirements, and producer specs for exact knowledge and compliance necessities. This information offers a basis for understanding Schedule 40 pipe, however additional analysis could also be mandatory for advanced or specialised purposes.
